What Is a Welding Fume Extractor?
What Does a Welding Fume Extractor Do?
Welding generates very small airborne particles and gases when metals and welding consumables are heated. These contaminants can enter the breathing zone of the welder and spread into surrounding work areas when they are not adequately controlled.
Welding fumes are classified by the International Agency for Research on Cancer as carcinogenic to humans. This is one reason effective fume control is an important part of welding safety.
Learn more about the health risk in Welding Fume Classified as Carcinogenic to Humans .
How Does a Welding Fume Extractor Work?
Most source capture systems use airflow to draw contaminated air away from the welding operation and into an extraction system.
A hood, extraction arm, nozzle or work surface is positioned near the welding source.
A fan or high-vacuum system creates airflow that pulls contaminated air into the extractor.
Captured particulate is filtered, or contaminated air is exhausted according to the system design.
For a deeper technical overview, read What Are Welding Fume Extractors and How Do They Work?
Why Capture Welding Fume at the Source?
The concentration of welding fume is typically highest close to the welding operation. Capturing contaminated air near the source can reduce the opportunity for the fume plume to enter the welder's breathing zone or disperse throughout the shop.
This principle is known as source capture.
Extraction arms are one of the most common ways to accomplish source capture. The arm allows the operator to position the hood close to the welding area while maintaining access to the workpiece.
Where Should the Extraction Arm Be Positioned?

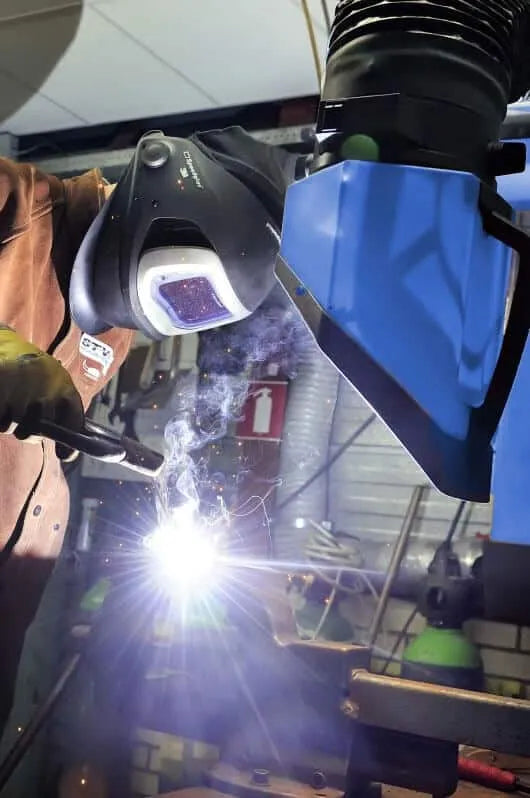

An extraction hood should be positioned close enough to the welding plume to capture the fume without interfering with the welding process.
If the hood is moved too far away, capture effectiveness decreases and more airflow is required. If it is positioned incorrectly, the plume can pass through the welder's breathing zone before reaching the extractor.
Close to the Fume Source
Keep the hood near the rising plume and adjust it as the welding position changes.
Pulling Fume Across the Welder
Position the hood so contaminated air is drawn away from the breathing zone rather than across it.
Browse Plymovent extraction arms available through Remove The Fume.
Portable, Mobile or Stationary?
The correct fume extractor depends on where welding takes place, how often the equipment is used, how much fume is generated and whether the welding location changes.
| Extractor Type | Typical Application | Main Advantage |
|---|---|---|
| Portable high vacuum | Occasional welding, confined spaces and hard-to-reach work | Compact source capture that can travel to the job |
| Mobile extractor | Workshops where welding locations change | Self-contained unit that can move between welding stations |
| Stationary extractor | Permanent welding stations | Dedicated extraction without occupying mobile floor space |
| Downdraft table | Welding and grinding performed on a work surface | Captures contaminants through the table |
PHV for Light-Duty and Hard-to-Reach Work
The Plymovent PHV is a portable high-vacuum fume extractor designed for light-duty metal fabrication.
It is suited to smaller welding and fabrication shops, maintenance work, schools, ship hulls, tanks and other locations where a larger mobile or stationary system may be difficult to use.
The PHV uses source capture and includes a multi-stage filtration system with a final HEPA H12 filter.
Mobile Extractors for Flexible Welding Areas
Mobile fume extractors combine a fan, filtration system and extraction arm in a wheeled unit. They can be moved between workstations and positioned close to the welding source.
MobileGo
The MobileGo is designed for relatively small facilities and lower to moderate welding activity. It uses a disposable filter package and includes an aluminum extraction arm.
MobilePro
The MobilePro is designed for heavier welding use and uses a self-cleaning filter cartridge. It is available with a standard MERV 16 filter configuration or optional HEPA H14 after filtration.
Compare the two systems in MobileGo vs. MobilePro: Which Fume Extractor Is Right for Your Shop?
Or browse all mobile welding fume extractors .
Stationary Systems for Fixed Welding Stations
Stationary fume extractors are useful where welding takes place at a permanent workstation. Wall-mounted equipment can keep the extraction unit away from valuable floor space while an arm provides source capture at the welding area.
SFD
The Plymovent SFD is a wall-mounted stationary fume extractor using a disposable LongLife filter. Current configurations include an extraction arm and fan package for at-source capture.
SFS
The Plymovent SFS is a wall-mounted stationary extractor with a self-cleaning filter system. It is intended for welding and grinding fume extraction at the source.
Do All Welding Fume Extractors Use the Same Filter?
No. Filter configuration varies significantly between models. This is one reason equipment should be selected for the actual welding process rather than assuming every extractor provides the same level or type of filtration.
| Model | Filter Approach | Typical Duty |
|---|---|---|
| PHV | Multi-stage filtration with final HEPA H12 | Light-duty portable use |
| MobileGo | Disposable filter package | Light-duty mobile extraction |
| MobilePro | Self-cleaning MERV 16 filter with optional HEPA H14 after-filter | Heavy-duty mobile extraction |
| SFD | Disposable LongLife filter | Stationary source capture |
| SFS | Self-cleaning LongLife filter | Stationary source capture |
Filtration requirements depend on the welding process, contaminants and whether filtered air is exhausted or recirculated. Do not select an extractor solely by filter rating.
Which Welding Fume Extractor Do You Need?
Start with the welding application rather than the product. The correct extractor depends on how frequently welding takes place, how much fume is produced, the materials involved and where the work is performed.
Occasional welding and high-volume production place very different demands on an extraction system.
Fixed stations may suit stationary extraction, while changing work locations can favor mobile equipment.
Process, material and coating can affect fume composition and filtration requirements.
One workstation and a multi-bay production environment may require very different system designs.
Floor space, wall space, access and facility layout all influence equipment selection.
Filter type should match the welding application and the way the extracted air is handled.
Match the System to the Application
| Application | Starting Point | Why |
|---|---|---|
| Occasional welding or difficult access | PHV | Compact portable high-vacuum extraction |
| Lower to moderate mobile welding volume | MobileGo | Light-duty wheeled source capture |
| High-volume mobile welding | MobilePro | Heavy-duty self-cleaning mobile extraction |
| Fixed welding station with disposable filtration | SFD | Wall-mounted stationary source capture |
| Fixed welding station with self-cleaning filtration | SFS | Stationary extraction with self-cleaning filter |
Learn More Before Choosing a System
Welding Fume Extractor Questions
A welding fume extractor is a ventilation system that captures contaminated air generated during welding and moves it away from the worker's breathing zone. Depending on the system, particles are filtered or the extracted air is exhausted.
For an extraction-arm system, the hood should be positioned close to the rising welding plume without interfering with the welding process. It should draw contaminated air away from the worker, not across the breathing zone.
Mobile extractors are designed to move between welding locations. Stationary extractors are normally installed at permanent welding stations and can be wall mounted to keep equipment off the shop floor.
Some do, but not every model uses the same filtration. For example, the PHV includes HEPA H12 filtration and the MobilePro offers an optional HEPA H14 after-filter. Other systems use different disposable or self-cleaning filter configurations.
The right extractor depends on welding volume, process, material, number of welders, whether workstations move and the filtration requirements of the application. Light-duty, heavy-duty, mobile and stationary systems are designed for different use cases.
The Right Extractor Starts With the Welding Application
Welding fume extraction is not one-size-fits-all. A system that works well for occasional welding may not be suitable for a production shop welding throughout the day.
Start by understanding the welding process, level of use, work location and contaminants involved. Then select an extraction method and filtration system designed for those conditions.
