Stationary Filter Self-Cleaning Ultra Single

SFS (self-cleaning filter)

From: USD $4,850.00

FREE SHIPPING

  • Stationary Self-Cleaning  Fume Extractor
  • Hood mounted work lamp and automatic start/stop sensor
  • Includes 14 Extraction arm with 1 HP 115 Volt Fan unit
  • LongLife filter  538 Square Feet of Filter Media
  • Airflow at the hood 736 CFM
Clear
SKU: N/A Categories: ,

Description

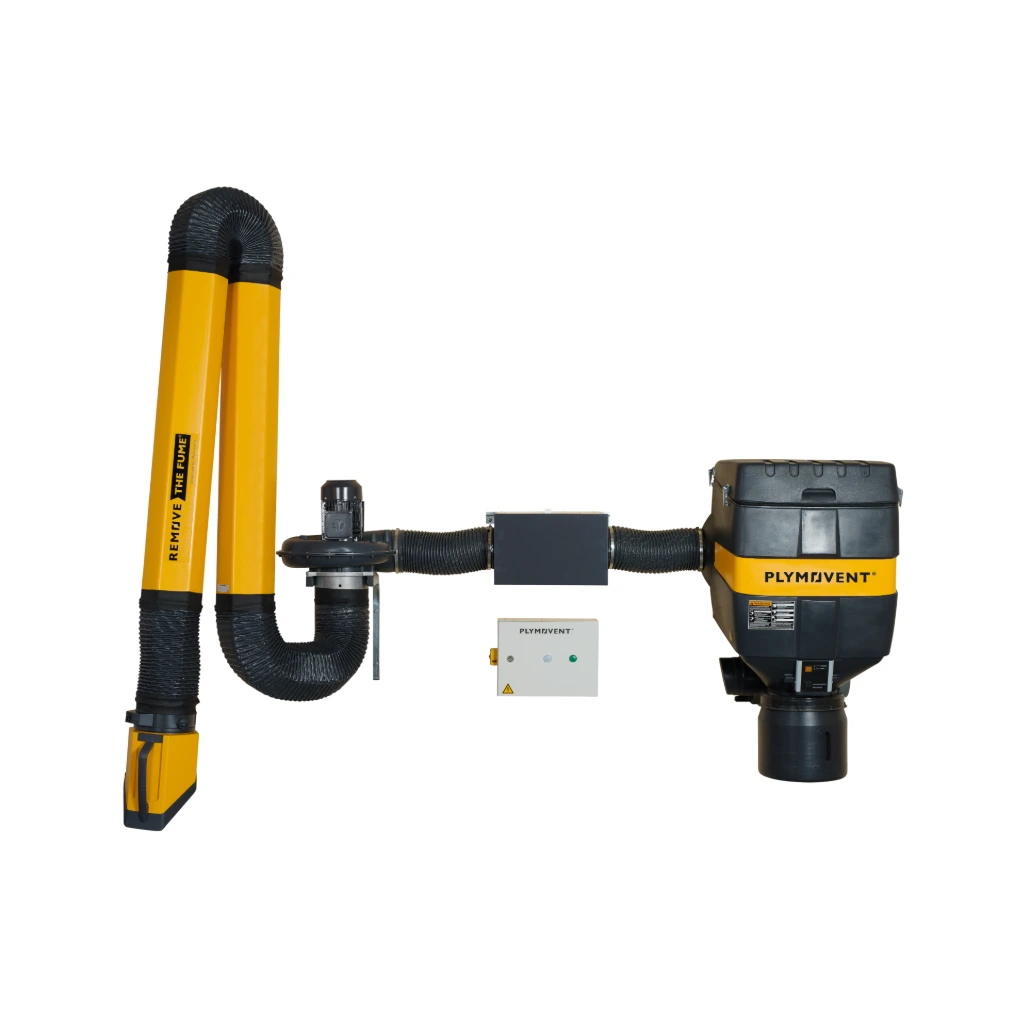

The Stationary Filter Self-Cleaning Ultra Single (SFS ULTRA SINGLE) is a wall-mounted disposable filter, fan and single arm fume extractor package that effectively removes hazardous welding and grinding fumes at-the-source. The SFS ULTRA SINGLE package includes the Fan-28, a wall-mounted extraction fan and the UltraFlex-4 extraction arm. With the Fan-28 and the UltraFlex-4 extraction arm’s built in work lamp and auto start sensor, the SFS ULTRA SINGLE package offers welders and fabricators an extremely effective, flexible, user-friendly solution to capture fumes. Designed with a RotaPulse system for automatic sectional cleaning of the filter cartridge, the fume and dust particles end up in the SFS ULTRA dust tray. The SFS ULTRA SINGLE package is optimal for welding and fabrication facilities with limited floor space. It is ideal for small welding and fabrication shops, plant maintenance, schools and general fabrication and production facilities demanding a welding fume extractor that is up and out-of-the-way to protect their personnel from hazardous fumes.

Additional information

Weight 425 lbs
Dimensions 48 × 48 × 88 in
Color

Blue, Red, Yellow
High Efficiency

No, Yes

Product includes

  • 1 –SFS stationary self cleaning fume extractor unit
  • 1 –Standard MERV 11 LongLife filter cartridge
  • 1 –Connection Hose Kit : 6 in. (152 mm) diameter, 4 ft (1 m) long hose and clamps
  • 1 –Fan-28 blower unit
  • 1 –Start/Stop Motor Protection Switch with thermal relay
  • 1 –UltraFlex-4 (13 ft) fume extraction arm with rotating hinge, hood working lamp and automatic start/stop arc sensor for optimal welding and weld fume control
  • 1 –TNB/NMB wall-mount bracket kit for Fan-28 and Ultra-Flex 4 extraction arm



Product Description

The SFS ULTRA SINGLE fume extractor package removes and filters fumes from medium to more intensive duty welding and grinding applications at-the-source.  The SFS ULTRA SINGLE features an aluminum spark arresting pre-filter.  For its primary filter, the SFS is equipped with a RotaPulse system for automatic sectional cleaning of the filter cartridge by (externally supplied) compressed air.  The fume particulate and dust ends up in the SFS ULTRA dust tray.  In turn, the SFS ULTRA SINGLE is designed with a filter pollution indicator displaying whether extraction is still satisfactory or the filter needs to be replaced.

The SFS ULTRA SINGLE comes with the Fan-28, a robust 1 HP (.75kW) fan which is easily mounted to the wall to provide a low-vacuum, high airflow volume fume removal extraction capacity of 735 CFM / 1250 m3/h.  The single UltraFlex-4 extraction arm is mounted to the Fan-28, offering welders and fabricators an extremely flexible, user-friendly, 13 ft (4 m) reach to remove fumes at-the-source.  The UltraFlex-4 extraction arm incorporates a BalanceWheel spring balance system and RotaHood design for ultra-light, user friendly positioning of the arm and hood.  The BalanceWheel system, a friction-free spring-supported balance system that compensates arm weight, keeps maintenance to a minimum and immediately converts each manual adjustment to the arm into a stable extraction position.  Incorporated into the 360 degree rotatable RotaHood is a throttle valve that can be fully opened, partially opened or completely closed to control airflow at hood opening.  In addition, a working lamp, manual on/off switch and automatic start/stop sensor are integrated to increase operators productivity and reduce energy consumption.

Thanks to its wall-mounted design,  the SFS ULTRA SINGLE package is optimal for welding and fabrication facilities with limited floor space.   It is ideal for small welding and fabrication shops, plant maintenance, schools and general fabrication and production facilities demanding a welding fume extractor that is up and out-of-the-way as it protects their personnel from hazardous fumes in multiple locations.

Benefits/Highlights

  • Significant airflow and extraction capacity designed to exceed local weld fume standards (ie. OSHA) when properly installed, operated and maintained.
  • RotaPulse system for automatic sectional filter cleaning resulting in longer filter life, lower operational and maintenance costs.
  • Filter status indicator to easily monitor filter life.
  • Extra filtration steps enhances filtration capacity while reducing risk of system damage.
  • Flexible, user-friendly weld fume extraction arm with frictionless motion to easily reach multiple work positions.
  • Integrated work lamp, manual on/off switch and automatic start/stop sensor at hood to increase operator productivity and energy savings.
  • Wall-mounted floor space saver design.
  • Low noise
  • Safe and easy
  • Easy to Order with just one article receive all products to quickly install, start-up and operate.

Applications

  • Medium to more intensive welding and grinding applications
  • MIG-MAG/GMAW welding
  • TIG welding
  • FCAW welding
  • Stick/MMAW welding

Specifications

Filter Surface Area

  • Pre-filter: 1.5 ft2 (.14m2)
  • LongLife FCC 30: 325 ft2 (30 m2)

Filter Efficiency

  • Prefilter: 80%<90%
    • G3 according to DIN EN 779
  • DuraFilter FCC 30: >99%
    • MERV 11 according to ASHRAE 52.2

RotaPulse Filter Cleaning System

  • Required compressed air
    • dry and oil-free according to ISO 8573-3 class 6
  • Required pressure
    • 4-5 bar (1600-2000” WG)
  • Compressed air connection
    • quick connect coupling ¼ in.

Performance

  • 1 HP (0.75 kW) motor

Airflow Capacity

  • 1413 CFM (2400 m3/h)
    • Unrestricted extraction capacity ‘without’ extraction arm connected
  • 736 CFM (1250 m3/h)
    • Net extraction capacity ‘with’ UltraFlex-4 extraction arm connected

Noise level according to ISO 3746

  • 69 dB(A)

Electrical

  • 120V/1Ph~/60Hz

SFS Base Unit with Pre-Filter Box

  • Net Weight: 110 lbs (50 kg)
  • Net Dimensions (h x w x d) : 36 in x 28 in x 26 in (900 mm x 720 mm x 660 mm)

Fan-28

  • Net Weight: 33 lbs (15 kg)
  • Net Dimensions (l x w x h) : 20 in x 19 in x 15 in (500 mm x 480 mm x 370 mm)

UltraFlex-4 Extraction Arm

  • Net Weight: 37.5 lbs (17 kg)
  • Maximum arm reach: 13 ft (4 m)
  • Diameter: 8 in (203 mm)
